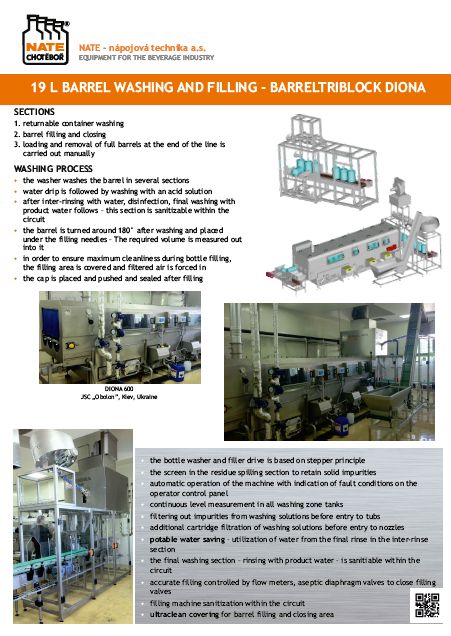

Bareltriblock – 19L barrel washing and filling

• The bottle washer and filler drive is based on stepper principle
• The screen in the residue spilling section to retain solid impurities
• Automatic operation of the machine with indication of fault conditions on the operator control panel
• Continuous level measurement in all washing zone tanks
• Filtering out impurities from washing solutions before entry to tubs
• Additional cartridge filtration of washing solutions before entry to nozzles
• Potable water saving – utilization of water from the final rinse in the inter-rinse section
• The final washing section – rinsing with product water – is sanitiable within the circuit
• Accurate filling controlled by flow meters
• Aseptic diaphragm valves to close filling valves
• Filling machine sanitization within the circuit
• Ultraclean covering for barrel filling and closing area

Sections:

1. Returnable container washing
2. Barrel filling and closing
3. Loading and removal of full barrels at the end of the line is carried out manually

Fundamental washing procedure:

• The washer washes the barrel in several sections
• Water drip is followed by washing with an acid solution
• After inter-rinsing with water, disinfection, final washing with product water follows – this section is sanitizable within the circuit
• The barrel is turned around 180° after washing and placed under the filling needles – The required volume is measured out into it
• In order to ensure maximum cleanliness during bottle filling, the filling area is covered and filtered air is forced in
• The cap is placed and pushed and sealed after filling
